Manual vs Automated Positioning Systems: Which Is Better for OTA Testing?

Manual vs Automated Positioning Systems

Table of Contents

  • The Real Challenge Behind OTA Measurements
  • When Manual Positioning Starts Becoming a Limitation
  • What Changes When Positioning Becomes Automated
  • Looking at a Typical OTA Testing Workflow
  • Why Repeatability Often Becomes the Deciding Factor
  • Lessons From Automotive OTA Testing
  • The Value of Repeatable Positioning in OTA Testing
  • Frequently Asked Questions

Manual vs Automated Positioning Systems: Which Is Better for OTA Testing?

For OTA testing, an automated positioning system is often the better option when repeatability, throughput, and measurement consistency are priorities. That does not mean a manual antenna positioner no longer has a place in modern RF laboratories. The decision usually depends on the type of testing being performed, the number of measurements required, and how frequently the test environment is used.

As wireless devices become more complex and validation programs become larger, many organizations are taking a closer look at how positioning affects both measurement quality and overall OTA testing efficiency.

Key Takeaways

  • A manual antenna positioner remains a practical solution for smaller testing programs.
  • Larger validation projects often benefit from an automated positioning system.
  • Repeatability is one of the most important considerations in OTA measurements.
  • Improved OTA testing efficiency is often achieved by reducing repetitive manual tasks.
  • Antenna measurement automation supports more consistent testing workflows.
  • An advanced RF positioning system can help maintain measurement consistency across multiple test cycles.
  • Custom positioners for automotive testing address specialized positioning requirements in connected vehicle validation.

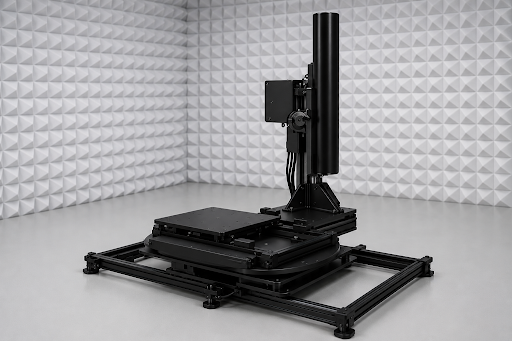

The Real Challenge Behind OTA Measurements

Positioning is sometimes viewed as a supporting function within an OTA chamber. In practice, it has a direct impact on the quality of the measurements being collected.

A wireless device may need to be measured at dozens or even hundreds of different angles before engineers have a complete picture of its performance. The challenge is not simply moving the device. The challenge is moving it in a controlled and repeatable way every time a test is performed.

Consider a development team validating a new antenna design. Initial measurements are taken, adjustments are made to the design, and the device returns for another round of testing. Engineers expect those results to be comparable. If positioning conditions change from one session to the next, comparing data becomes more difficult.

This is one reason why positioning systems have become an important part of modern RF testing solutions. The objective is not only movement. The objective is to maintain consistency throughout the measurement process.

When Manual Positioning Starts Becoming a Limitation

A manual antenna positioner can work very well in the right environment.

Many research facilities, universities, and development laboratories perform relatively small testing programs. Engineers may only need a limited number of measurements to validate a concept or investigate a specific issue. In these situations, manual positioning can be practical and cost-effective.

The situation changes when testing requirements begin to expand.

A larger validation project may require repeated measurements across multiple device orientations and operating conditions. The engineer performing the test must continuously reposition the device, verify alignment, and restart the measurement sequence. Repeating these steps throughout the day increases the amount of time required to complete the project.

The challenge is not necessarily accuracy. Skilled operators can position devices carefully and achieve good results. The challenge is maintaining the same positioning conditions repeatedly over long testing campaigns.

As workloads increase, manual processes often become one of the factors limiting OTA testing efficiency and overall test chamber productivity.

What Changes When Positioning Becomes Automated

Automation changes the workflow more than it changes the measurement itself.

With an automated positioning system, movement instructions are programmed into the test sequence. Once testing begins, the system carries out those movements according to predefined parameters.

The benefit becomes clear during larger measurement programs. Instead of stopping after every measurement point to reposition equipment, engineers can allow the system to progress through the sequence automatically.

Several practical advantages emerge from this approach:

  • Consistent movement between measurement points
  • Reduced dependence on manual adjustments
  • Improved repeatability across test cycles
  • Better use of engineering resources

The value of an automated positioning system becomes even more apparent when measurements need to be repeated weeks or months later. Returning to the same test conditions is generally easier when positioning follows predefined movement routines rather than manual adjustments.

For laboratories managing multiple projects, automation can also contribute to better scheduling and resource utilization. This engineering-led approach is reflected in companies such as Orbis Systems, where positioning solutions are designed to support repeatable and controlled OTA measurement environments.

Looking at a Typical OTA Testing Workflow

The differences between manual and automated positioning become easier to understand when viewed through a practical testing scenario.

Imagine a team evaluating a wireless device across a large set of orientations inside an OTA chamber.

With a manual antenna positioner, the operator performs a measurement, adjusts the position, verifies the angle, and starts the next measurement. The process continues until the entire test plan has been completed.

There is nothing inherently wrong with this approach. However, as the number of measurement points increases, the amount of manual effort grows as well.

Now consider the same workflow using an automated positioning system.

The measurement sequence is configured in advance. Once initiated, positioning and measurement activities proceed according to the programmed workflow. The engineer’s role shifts from repeatedly adjusting hardware to monitoring results and analyzing data.

This difference is one reason many organizations investing in antenna measurement automation focus on workflow improvements rather than movement capabilities alone.

In practical terms, the discussion is not simply about motorized positioning. It is about reducing repetitive tasks that consume time without contributing additional measurement value.

Why Repeatability Often Becomes the Deciding Factor

When engineers compare manual and automated systems, repeatability frequently becomes the deciding factor.

Most measurement programs do not end after a single test session. Devices return for additional validation. Design changes require verification. Production samples may need to be compared against earlier results.

In all of these situations, confidence in the data depends on confidence in the testing conditions.

An advanced RF positioning system helps create consistent measurement environments by reducing variation introduced during repositioning. This consistency can be especially valuable when comparing measurements collected over extended periods.

For many organizations, repeatability is ultimately more important than movement speed alone.

The Value of Repeatable Positioning in OTA Testing

The discussion surrounding manual and automated positioning is less about choosing a universally superior technology and more about understanding testing requirements.

For laboratories conducting occasional measurements, a manual antenna positioner may continue to provide the functionality required for successful testing. However, as measurement programs grow in scale and complexity, the advantages of an automated positioning system become increasingly difficult to ignore.

Organizations evaluating modern RF testing solutions are often looking beyond movement capabilities alone. Consistency, repeatability, workflow efficiency, and long-term testing requirements all influence the decision.

This focus on measurement quality is reflected throughout the industry, including in the positioning technologies developed by Orbis Systems. As wireless testing requirements continue to evolve, Orbis Systems and other industry participants continue to emphasize the importance of reliable positioning in achieving dependable OTA measurement results.

Frequently Asked Questions

1. Is a manual antenna positioner still suitable for OTA testing?

Yes. A manual antenna positioner can be effective for research projects, prototype development, and lower-volume testing environments where measurement requirements are relatively limited.

2. Why do many laboratories adopt an automated positioning system?

Many laboratories adopt an automated positioning system to improve repeatability, reduce manual intervention, and support more efficient testing workflows.

3. How does automation improve OTA testing efficiency?

Automation reduces the time spent repositioning devices during measurement campaigns, allowing engineers to focus more on data analysis and validation activities.

4. What is the role of antenna measurement automation?

Antenna measurement automation helps standardize testing procedures, improve workflow consistency, and support larger measurement programs.

5. Why are custom positioners for automotive testing important?

Custom positioners provide precise, automated, and repeatable positioning of vehicles, antennas, sensors, and test targets during automotive RF, OTA, radar, GNSS, and ADAS testing. They improve measurement accuracy, reduce alignment-related errors, accelerate validation cycles, and ensure reliable, standards-compliant test results for modern connected and autonomous vehicle technologies.

Categories
Blogs

Scaling Telecom Infrastructure Globally with Integrated Test Equipment Solutions

Scaling Telecom Infrastructure Globally

Table of Contents

  1. The Growing Complexity of Global Telecom Infrastructure
  2. Why Global Telecom Equipment Integration Matters
  3. Improving Consistency Through Integrated Test Environments
  4. The Role of Telecom Hardware Deployment Services
  5. Strengthening Network Validation with Reliable Infrastructure Support
  6. The Importance of International RF Engineering Support
  7. Managing the Complete RF Equipment Lifecycle
  8. Wireless Test Equipment Management for Scalable Operations
  9. Creating a Foundation for Long-Term Telecom Growth
  10. FAQs

Scaling Telecom Infrastructure Globally with Integrated Test Equipment Solutions

Telecom networks are evolving rapidly. The demand for faster, broader, and more reliable connectivity has pushed operators, manufacturers, and technology providers to build infrastructure capable of supporting increasingly large and complex deployments. Expanding 5G rollouts, emerging wireless technologies, and multi-region network deployments have introduced operational and technical challenges that were far less significant a decade ago.

As networks scale, maintaining consistency becomes increasingly difficult. Testing environments across different countries must deliver repeatable and standardized results across teams and deployment sites. Installation and deployment processes need to remain uniform regardless of location, while test equipment must be properly tracked, calibrated, maintained, and readily available for field operations.

To address these challenges, many organizations are adopting a more integrated approach that combines testing infrastructure, deployment planning, equipment management, and technical support into a unified operational framework. This integrated telecom test equipment strategy helps organizations establish standardized testing environments, reduce operational inefficiencies, and build infrastructure capable of supporting long-term network growth and global scalability.

Key Takeaways

  • Global telecom infrastructure projects require standardized testing and deployment processes to ensure consistent operation across regions.
  • Global telecom equipment integration helps create standardized testing and deployment environments across multiple locations.
  • Telecom hardware deployment services support efficient equipment installation, integration, and operational readiness.
  • Network testing infrastructure support plays an important role in system validation, benchmarking, and performance verification.
  • International RF engineering support helps organizations address technical challenges associated with global deployments.
  • RF equipment lifecycle support, including calibration, maintenance, and asset management, contributes to long-term reliability and testing consistency.
  • Wireless test equipment management supports scalability, operational efficiency, and optimized resource utilization.
  • Solutions such as test equipment integration, RF chamber solutions, and engineering support services all contribute to strengthening modern telecom infrastructure strategies.

The Growing Complexity of Global Telecom Infrastructure

Today’s telecom infrastructure consists of wireless systems, RF testing platforms, network validation environments, and a range of supporting technologies that must operate together seamlessly and reliably.

As projects expand across multiple regions and countries, operational complexity increases significantly. Organizations commonly face challenges such as managing equipment across multiple locations, maintaining standardized testing procedures between facilities, supporting deployment timelines in different regions simultaneously, ensuring measurement consistency and calibration accuracy across sites, and coordinating engineering teams operating in different parts of the world.

Without a structured integration and deployment strategy, projects can experience delays, inconsistencies, and increased operational risk. As a result, many organizations are adopting integrated solutions that help maintain consistency, visibility, and operational efficiency throughout the entire deployment lifecycle.

Why Global Telecom Equipment Integration Matters

Deploying a telecom network involves far more than simply installing hardware. The systems involved must communicate effectively with one another, testing environments must deliver reliable and repeatable results, and operational processes must remain consistent across different regions and deployment sites.

Global telecom equipment integration addresses these challenges by connecting test systems, RF infrastructure, software platforms, and supporting technologies into a unified operational framework. This allows organizations to maintain standardized testing and deployment environments across multiple facilities regardless of geographic location.

The practical benefits include improved testing repeatability, reduced compatibility issues, simplified equipment management, and more consistent deployment practices across regions. For organizations managing large-scale telecom system deployment projects, this level of standardization and operational consistency is essential for maintaining efficiency, reliability, and long-term scalability.

Improving Consistency Through Integrated Test Environments

Testing sits at the center of every telecom deployment. Before systems go live, organizations must verify that wireless devices, network equipment, and RF performance comply with required specifications and industry standards. That level of confidence depends on testing environments capable of delivering accurate, reliable, and repeatable results.

Integrated test environments make it possible to replicate standardized workflows across multiple locations. Solutions such as test equipment integration connect multiple systems into a coordinated testing environment, while RF chamber solutions provide the controlled conditions required for accurate and repeatable RF measurements, validation, and performance testing.

With a well-integrated testing infrastructure in place, organizations can reduce inconsistencies, accelerate validation processes, and improve overall operational efficiency. As telecom projects continue expanding across multiple countries and facilities, maintaining this level of coordination and standardization becomes increasingly important.

The Role of Telecom Hardware Deployment Services

Large-scale telecom infrastructure projects involve multiple interconnected processes. Equipment must be installed correctly, systems need to be configured and integrated properly, and testing and validation must occur at defined stages while remaining aligned with deployment timelines across multiple locations.

Telecom hardware deployment services help bring structure and coordination to this process. From infrastructure readiness and equipment installation to system integration, testing, and final validation, each phase is designed to support overall project execution while minimizing operational disruptions and integration issues.

For organizations managing complex telecom system deployment projects across multiple regions, this structured approach improves consistency, operational efficiency, and deployment reliability.

Strengthening Network Validation with Reliable Infrastructure Support

A network is only as reliable as the testing and validation processes used to verify it. Before systems move into a production environment, functionality, performance, interoperability, and operational readiness must all be thoroughly validated. This is what makes network testing infrastructure support so important in modern telecom operations.

Testing infrastructure supports nearly every stage of the validation process, including network verification, RF measurements, performance benchmarking, quality assurance, and production testing. Reliable network testing infrastructure support helps organizations maintain confidence in test accuracy and consistency while also supporting scalable operations as telecom technologies continue to evolve.

The Importance of International RF Engineering Support

Telecom infrastructure projects often span multiple countries, involve several facilities, and require coordination across geographically distributed teams. Maintaining consistent technical standards, testing procedures, and deployment practices across these environments requires structured engineering oversight and technical expertise.

International RF engineering support provides organizations with technical guidance throughout every phase of a project, including planning, system integration, deployment, validation, and ongoing operations. As organizations expand into additional markets, this support helps maintain operational consistency while also addressing site-specific requirements such as regional regulations, spectrum conditions, infrastructure constraints, and deployment environments.

Managing the Complete RF Equipment Lifecycle

Telecom testing equipment represents a significant capital investment, making effective lifecycle management an important operational consideration for operators, manufacturers, and testing facilities.

A structured approach to RF equipment lifecycle support helps maintain measurement accuracy, operational capability, and testing reliability throughout the equipment lifecycle — from installation and commissioning through to upgrade planning and end-of-life replacement. This typically includes calibration scheduling, preventive maintenance, performance verification, software and hardware updates, and equipment modernization.

With effective RF equipment lifecycle support in place, organizations can reduce unexpected downtime, extend equipment usability, and maintain the long-term reliability and consistency of critical testing environments.

Wireless Test Equipment Management for Scalable Operations

As telecom networks expand, the number of testing assets that must be tracked, maintained, and coordinated also increases. Maintaining visibility and operational control over these resources across multiple facilities and regions is essential for efficient and scalable operations.

Wireless test equipment management provides organizations with a structured approach to tracking asset utilization, scheduling calibration activities, coordinating preventive maintenance, and ensuring equipment is deployment-ready when required. Effective equipment management also helps improve resource allocation, reduce downtime, and maintain testing consistency across distributed operations.

When combined with global telecom equipment integration and broader telecom system deployment strategies, wireless test equipment management becomes an important contributor to long-term operational efficiency, scalability, and infrastructure reliability.

Creating a Foundation for Long-Term Telecom Growth

Telecom networks continue to expand in scale, complexity, and performance requirements. Managing testing environments, deployment activities, engineering resources, and equipment lifecycles across multiple regions requires structured operational coordination that supports both current infrastructure demands and future growth objectives.

Through effective global telecom equipment integration, organizations can establish standardized processes that enable reliable testing, efficient deployments, and scalable operations without compromising consistency across locations. Companies such as Orbis Systems demonstrate the value of integrated testing environments, test equipment integration, RF chamber solutions, and engineering support services in modern telecom infrastructure projects.

A well-planned telecom system deployment strategy remains a critical component for organizations seeking long-term operational reliability, scalability, and infrastructure efficiency.

Frequently Asked Questions

Q1. What services are included in telecom hardware deployment support?

Telecom hardware deployment support typically covers infrastructure readiness assessment, equipment installation and rack integration, RF instrument configuration, system commissioning, automated test environment setup, and post-deployment validation. For global rollouts, it also includes site-specific adaptation for regional spectrum conditions, coordinating multi-location deployment timelines, and ensuring all integrated systems meet performance benchmarks before going live.

Q2. How does test equipment integration work in a multi-site telecom deployment?

Test equipment integration involves connecting RF instruments, signal switching units, automation interfaces, and modular test racks into a unified and scalable platform. In a multi-site deployment, this means replicating standardized test architectures across all locations so that each facility operates with identical measurement workflows, calibration baselines, and automation sequences, ensuring that results are directly comparable regardless of where testing occurs.

Q3. What does RF equipment lifecycle support involve at the technical level?

At a technical level, RF equipment lifecycle support includes scheduled calibration against traceable standards, preventive maintenance of RF switching paths and connectors, firmware and software updates for test instruments, performance drift monitoring, hardware refurbishment or component replacement, and end-of-life upgrade planning. The goal is to keep measurement uncertainty within defined limits throughout the equipment’s operational lifespan.

Q4. How do RF chamber solutions support OTA testing accuracy in global deployments?

RF chamber solutions, including anechoic chambers, RF shielded rooms, and OTA test chambers, provide the controlled electromagnetic environment required for accurate radiated measurements. In global deployments, standardized chamber configurations ensure that OTA test results from one facility are directly comparable to those from another. This is critical for validating 5G devices, base station antennas, and wireless modules against consistent performance thresholds across regions.

Q5. What engineering disciplines are involved in international RF engineering support for large-scale telecom projects?

International RF engineering support for large-scale telecom projects draws on RF engineering, mechanical engineering, electrical engineering, software engineering (including test automation platforms such as LabVIEW and C#), system-level integration engineering, and wiring and PWB engineering. Teams also address site-specific regulatory requirements, frequency band coordination, and interference management, all of which help ensure reliable network performance, regulatory compliance, and successful deployment across diverse geographic regions.



Categories
Blogs

Automotive V2X & 5G-Connected Vehicle Testing: Inside the OTA Chamber Setup

Inside the OTA Chamber Setup

Connected vehicles continuously send and receive data. They must maintain reliable communication with other vehicles, roadside infrastructure, mobile networks, pedestrians, and cloud platforms. This connectivity supports critical functions such as safety alerts, traffic updates, remote diagnostics, infotainment, and navigation services. However, reliable communication cannot simply be assumed. These systems must be validated under realistic RF and mobility conditions. That is why V2X connectivity testing is an essential part of modern connected vehicle development.

In addition, most modern connected vehicles now rely on 5G networks to enable higher data throughput, lower latency, and more reliable communication. These capabilities are especially important for time-sensitive applications such as autonomous driving assistance, collision avoidance, and real-time traffic coordination. However, integrating 5G hardware alone does not guarantee reliable performance.

Factors such as antenna efficiency, RF signal quality, network stability, handover performance, and interference behavior must all be carefully evaluated.

That is where 5G vehicle communication testing becomes critical. It enables engineering teams to verify wireless performance, validate antenna and RF behavior, and ensure stable connectivity before the vehicle is deployed in real-world driving conditions.

Key Takeaways

  • V2X connectivity testing evaluates how reliably a vehicle communicates with other vehicles, infrastructure, pedestrians, and networks.
  • Connected car OTA (Over-the-Air) testing measures wireless performance in a controlled RF environment.
  • Automotive wireless validation includes radiated RF testing for antennas, telematics systems, GNSS, Wi-Fi, Bluetooth, C-V2X, and cellular connectivity.
  • 5G connected vehicle testing verifies communication performance, latency, throughput, and reliability on advanced 5G networks.
  • C-V2X RF testing evaluates antenna performance, signal quality, radiated sensitivity, and link reliability.
  • An automotive OTA chamber provides a controlled and repeatable RF environment to ensure accurate wireless performance measurements.

Automotive V2X & 5G-Connected Vehicle Testing: Inside the OTA Chamber Setup

Why Traditional RF Testing Falls Short

For many years, RF testing was primarily performed using conducted measurements through cables and connectors. In this method, the device is directly connected to test equipment to measure parameters such as transmit power, receiver sensitivity, and signal quality. While conducted testing remains useful for component-level validation and debugging, it does not fully represent real-world wireless performance.

Modern vehicles rely heavily on integrated antenna systems, and antenna behavior is influenced by several real-world factors. Antenna placement, vehicle body structure, cable routing, nearby electronic systems, and signal reflections from surrounding surfaces can all affect wireless performance. These effects are not accurately captured in conducted cable-based testing alone. As a result, traditional RF measurements cannot replace full automotive wireless validation for connected vehicle platforms.

C-V2X RF testing is a strong example of this requirement. C-V2X systems must be evaluated using radiated OTA (Over-the-Air) testing, where RF signals propagate through free space just as they would in actual driving environments. This allows engineers to assess real antenna performance, radiation patterns, signal propagation, interference effects, and overall link reliability. If testing is limited only to conducted cable methods, important wireless performance issues may remain undetected until real-world deployment.

That is why OTA testing has become a standard and essential part of connected vehicle validation.

What Is Inside an Automotive OTA Chamber

An automotive OTA (Over-the-Air) chamber is a specialized RF test environment designed for wireless performance validation. It isolates the test area from external RF interference and provides a controlled, repeatable environment for accurate wireless measurements.

Inside a typical automotive OTA chamber setup, you would commonly find:

  • RF-shielded enclosure walls
  • RF absorber materials to minimize signal reflections and multipath effects
  • Measurement and communication antennas
  • Vehicle positioning systems or turntables
  • Channel emulators and signal simulation systems
  • RF measurement instruments and network analyzers
  • Test automation and control software

Each component plays an important role in maintaining a stable and repeatable RF test environment. Together, these systems enable accurate evaluation of antenna performance, wireless communication reliability, radiated sensitivity, and overall connected vehicle functionality.

Companies such as Orbis Systems develop advanced OTA and RF test environments that support controlled wireless validation for connected vehicles and V2X applications.

How Connected Car OTA Testing Works

The process behind connected car OTA (Over-the-Air) testing is relatively straightforward. The vehicle, wireless module, or test device is placed inside the OTA chamber. Engineers then configure the RF test environment to simulate the wireless conditions and network scenarios required for validation.

From there, various wireless performance measurements are performed. Engineers evaluate parameters such as signal quality, antenna efficiency, radiated performance, connection stability, data throughput, latency, and overall communication reliability. Because the OTA chamber provides a controlled and repeatable RF environment, the same test conditions can be reproduced consistently, allowing accurate comparison of results across multiple test cycles.

Detecting wireless performance issues during this stage is far more effective than discovering them after product deployment. Connected car OTA testing enables engineering teams to identify antenna, RF, and connectivity problems early in the development cycle, reducing the risk of communication failures in real-world operation.

Why 5G and C-V2X RF Testing Both Matter

The wireless systems used in modern connected vehicles are more advanced and complex than ever before. They must support high data throughput, maintain stable connectivity under changing environmental conditions, and communicate reliably with other vehicles, roadside infrastructure, cloud platforms, and mobile networks. As a result, comprehensive wireless validation has become critical.

C-V2X RF testing evaluates how effectively vehicle-to-everything communication systems perform within a controlled RF environment. This includes assessing antenna performance, radiated signal strength, receiver sensitivity, communication range, interference behavior, and overall link reliability. These tests help verify that the vehicle can maintain dependable direct communication with surrounding vehicles and infrastructure.

Meanwhile, 5G vehicle communication testing focuses specifically on cellular network performance over 5G infrastructure. It evaluates parameters such as network connectivity stability, data throughput, latency, handover performance, and communication reliability under different network conditions. This testing helps ensure that connected vehicle services can operate effectively across advanced 5G mobile networks.

Together, C-V2X RF testing and 5G vehicle communication testing provide a complete view of connected vehicle wireless performance. They validate both direct V2X communication and high-speed cellular connectivity, which are essential for modern connected and autonomous vehicle applications.

Companies such as Orbis Systems focus on advanced RF and OTA testing solutions designed to support connected vehicle validation and next-generation automotive wireless technologies.

Building Better Automotive Validation Labs

Testing requirements are evolving alongside connected vehicle technology. As automotive wireless systems become more advanced, validation laboratories must also adapt to support increasingly complex RF and connectivity testing. Engineering teams need flexible test environments that can support emerging wireless technologies while still delivering accurate, repeatable, and standardized results.

More laboratories are now adopting modular and scalable OTA testing platforms to improve testing efficiency and simplify validation workflows. In addition, advanced automotive RF testing solutions help engineering teams build reliable validation environments capable of supporting V2X, 5G, GNSS, Wi-Fi, Bluetooth, and other connected vehicle technologies.

A well-designed automotive OTA chamber setup supports not only current wireless validation requirements, but also future testing needs as automotive communication technologies continue to evolve. This long-term approach helps engineering teams remain prepared for next-generation connected and autonomous vehicle development.

Companies such as Orbis Systems contribute to this evolution by developing advanced RF and OTA validation environments for connected vehicle applications.

Conclusion

Connected vehicles rely heavily on wireless communication for safety systems, navigation, real-time data exchange, infotainment, and vehicle connectivity services. However, reliable wireless performance cannot be assumed. These communication systems must undergo thorough validation before deployment. V2X connectivity testing, connected car OTA (Over-the-Air) testing, and automotive wireless validation all play critical roles in ensuring that connected vehicle systems perform reliably under real-world operating conditions.

With a properly designed automotive OTA chamber, engineering teams can perform testing in a controlled and repeatable RF environment, enabling accurate evaluation of antenna performance, wireless connectivity, and communication reliability. This helps ensure that the wireless systems integrated into modern vehicles will perform consistently when reliability and safety matter most.

Frequently Asked Questions

What is V2X connectivity testing?

V2X (Vehicle-to-Everything) connectivity testing is the process engineers use to verify whether a vehicle can reliably communicate with other vehicles, roadside infrastructure, mobile networks, pedestrians, and cloud-based systems. The goal is to evaluate signal quality, communication reliability, latency, and overall wireless performance before the vehicle is deployed in real-world driving environments. It is a critical part of ensuring connected vehicle safety and reliability.

Why is connected car OTA testing important?

Connected car OTA (Over-the-Air) testing is important because it evaluates wireless performance through radiated testing in a controlled RF environment. Unlike conducted cable-based testing, OTA testing measures how antennas and wireless systems actually behave when RF signals propagate through free space. This provides engineers with a more accurate understanding of antenna performance, signal propagation, interference behavior, and overall communication reliability before production deployment.

What does an automotive OTA chamber do?

An automotive OTA chamber provides a controlled and RF-isolated environment for testing wireless communication systems without interference from external signals. The chamber creates repeatable test conditions, allowing engineers to generate consistent and reliable measurement results. It is used for radiated testing of antennas, telematics systems, communication modules, GNSS, Wi-Fi, Bluetooth, C-V2X, and other connected vehicle technologies.

Why is 5G vehicle communication testing needed?

5G vehicle communication testing is necessary because integrating 5G hardware alone does not guarantee reliable wireless performance. Engineers must verify that the vehicle can maintain stable communication under real network conditions. This includes evaluating signal quality, data throughput, latency, network stability, handover performance, and communication reliability. Without proper validation, wireless performance issues may only appear during real-world operations.

What is the role of C-V2X RF testing in connected vehicles?

C-V2X RF testing evaluates the radiated wireless performance of vehicle communication systems in controlled RF environments. The testing measures parameters such as antenna performance, radiated signal strength, receiver sensitivity, communication reliability, and interference behavior. Identifying RF and connectivity issues during validation is far more effective than discovering them after deployment, which is why C-V2X RF testing is a key part of connected vehicle development and automotive wireless validation.

Categories
Blogs

Private 5G in Smart Factories: The RF Validation Playbook for Industrial Deployments

Private 5G in Smart Factories:

Table of Contents

  1. Why Private 5G Networks Need a Different Validation Approach
  2. What Makes Industrial RF Environments Challenging
  3. Core RF Validation Steps for Private 5G Deployments
  4. What to Measure During Industrial Wireless Validation
  5. How OTA Chamber Solutions Supports the Process
  6. Reliable Deployments Start With the Right Testing
  7. Frequently Asked Questions

Private 5G in Smart Factories: The RF Validation Playbook for Industrial Deployments

Key Takeaways

  • Private 5G network testing in factory environments needs a structured approach that goes beyond standard wireless validation methods.
  • Industrial RF environments introduce interference, moving assets, and dense metallic structures that directly affect network performance.
  • OTA validation measures real radiated device behavior that testing alone cannot capture.
  • Manufacturing wireless validation should cover radiated transmit power (TRP), receiver sensitivity (TIS), throughput, latency, reliability, mobility/handover performance, and coverage performance.
  • OTA chamber solutions provide controlled, repeatable environments that industrial wireless validation programs depend on.
  • Private network OTA validation must be scalable as devices and network configurations change over time.

Why Private 5G Networks Need a Different Validation Approach

Smart factories operate under strict availability and performance requirements. Automated guided vehicles (AGVs), industrial robots, and machine vision systems rely on stable, low-latency communication. Connectivity degradation on the factory floor can reduce productivity and, depending on system architecture and safety controls, may also affect operational safety and equipment utilization.

Public mobile networks were not originally optimized for the deterministic performance, local control, and customization requirements common in industrial environments. Private 5G networks typically operate using licensed, shared, local, or dedicated spectrum resources and are deployed on enterprise-controlled infrastructure, making them well-suited for industrial environments. Even so, deployment inside a factory remains challenging because industrial RF environments introduce reflections, shadowing, interference, and dynamic changes that conventional wireless validation approaches may not fully capture.

This is why private 5G network testing and industrial wireless validation are critical. Before deployment, validation should assess RF performance, coverage, connected device behavior, mobility, and application-level requirements to ensure reliable end-to-end operation. Skipping this stage often leads to issues that become more difficult and costly to resolve after deployment.

What Makes Industrial RF Environments Challenging

Testing wireless networks in a factory is fundamentally different from testing them in a laboratory or office environment because the physical surroundings introduce RF propagation and performance challenges that engineers must account for.

Steel frames, overhead cranes, conveyor systems, and heavy machinery create reflections, scattering, and shadowing of RF signals, leading to multipath propagation and signal variability.

Variable-frequency drives (VFDs), welding systems, switching power electronics, and some industrial lighting systems can generate electromagnetic interference (EMI). These interference levels may change depending on equipment utilization and production activity.

Automated guided vehicles (AGVs), autonomous mobile robots (AMRs), and workers carrying connected devices continuously alter propagation paths, creating time-varying RF conditions throughout the day.

Sub-6 GHz frequencies commonly used in private 5G deployments exhibit different propagation characteristics indoors due to reflections, attenuation, penetration loss, and localized interference effects. Coverage and performance should therefore be validated through site-specific testing.

Because of these factors, RF simulation alone cannot fully predict real-world performance. Site surveys, controlled validation, and testing under representative operating conditions are required to confirm actual network behavior.

Core RF Validation Steps for Private 5G Deployments

A well-planned private 5G validation program progresses through several stages, beginning before deployment and continuing through commissioning and operational acceptance.

The first step is performing an RF site assessment before installation begins. This involves evaluating the intended operating bands to understand interference sources, noise floor, and propagation characteristics. Early assessment helps optimize antenna placement and coverage planning.

The second step is validating individual devices before network integration. Automated guided vehicles (AGVs), industrial controllers, and wireless sensors with integrated antennas may require OTA validation depending on deployment requirements. OTA chamber solutions are used to measure total radiated power (TRP), total isotropic sensitivity (TIS), and antenna radiation patterns under controlled conditions.

The third step is network-level integration testing. After individual validation, the complete network is evaluated for coverage, mobility, and handover performance, interference resilience, latency, throughput, and Quality of Service (QoS) under representative traffic conditions.

The fourth step is application-level validation, where industrial workloads such as AGV coordination, machine vision traffic, and sensor telemetry are verified against operational performance targets.

What to Measure During Industrial Wireless Validation

Industrial wireless validation works best when testing focuses on measurements that provide a clear view of both network and device performance. Several key metrics help determine whether a private 5G deployment can meet operational requirements.

Reference Signal Received Power (RSRP) measures the strength of the received reference signal between the network and the device. Reference Signal Received Quality (RSRQ) provides an indication of signal quality by reflecting overall received conditions, including interference and network loading. Signal-to-Interference-plus-Noise Ratio (SINR) measures how effectively the desired signal can be distinguished from interference and background noise and is a key indicator of achievable throughput and reliability.

Total Radiated Power (TRP) and Total Isotropic Sensitivity (TIS) are equally important for device-level validation. TRP represents the total RF power radiated by a device across all directions, while TIS indicates receiver sensitivity under real radiated conditions by measuring the minimum signal level required to maintain acceptable performance. These metrics capture antenna and device integration effects that conducted RF measurements alone cannot fully represent, which is why OTA testing plays an important role in validation.

Beyond RF measurements, throughput, latency, reliability, and jitter help confirm whether the network can support the data loads and response-time requirements of industrial applications. Handover and mobility testing verify that moving devices, especially automated guided vehicles (AGVs) and mobile robots, maintain service continuity while transitioning between coverage areas. Finally, coexistence testing evaluates whether the private 5G network continues to deliver acceptable performance when operating alongside nearby wireless systems in adjacent or shared spectrum environments.

How OTA Chamber Solutions Supports the Process

OTA chamber solutions play an important role in private 5G device validation and RF performance verification. They provide controlled and shielded RF conditions that improve measurement repeatability by minimizing external interference and environmental variability.

For industrial connectivity testing, the appropriate chamber depends on factors including device size, operating frequency range, antenna architecture, and whether testing is intended for development, validation, or production. Working with an experienced partner such as Orbis Systems helps engineering teams select and configure the most suitable RF validation setup.

Modular OTA chambers support flexible testing of multiple industrial device types and can adapt as product requirements evolve. RF shielded rooms, often combined with absorber materials and dedicated measurement setups, enable radiated testing of larger equipment that cannot fit inside conventional chambers, including vehicle-mounted systems and large industrial controllers. RF shielded enclosures and compact test boxes are commonly used for repeatable production-line testing of smaller embedded radios and IoT modules.

Regardless of configuration, the objective remains consistent: improving repeatability, reliability, and confidence in manufacturing wireless validation results. Orbis Systems also supports hardware and RF engineering development for custom fixtures and automated test workflows tailored to industrial device requirements.

Reliable Deployments Start With the Right Testing

Private 5G is becoming an increasingly important wireless platform for smart factories and industrial digitalization initiatives. At the same time, RF conditions inside industrial facilities are often more dynamic and challenging than controlled laboratory environments. Industrial applications require predictable performance, reliability, and availability once operations begin.

This is why private 5G validation, including RF testing, network verification, and device-level OTA evaluation where applicable, should be treated as a core part of deployment planning rather than an afterthought. Early validation gives engineering teams greater confidence that the network will perform as expected under representative production conditions.

In addition, having a scalable OTA and wireless test infrastructure in place allows teams to repeat validation efficiently after software updates, configuration changes, device additions, or network expansion. Teams looking to build industrial wireless validation environments can learn more through Orbis Systems.

Frequently Asked Questions

1. What is private 5G network testing?

Private 5G network testing evaluates the RF performance, protocol behavior, and application performance of an enterprise-managed 5G deployment within an industrial environment. It may include device-level radiated performance testing, network integration testing, and application-level validation. The goal is to verify that the network meets performance and operational requirements before production deployment begins.

2. Why does smart factory RF testing require specialized methods?

Factory environments contain metallic structures, heavy machinery, moving assets, and sources of electromagnetic interference that affect how RF signals propagate. Reflections, multipath effects, shadowing, and changing operating conditions can significantly influence wireless performance. Conventional wireless testing approaches may not fully represent these conditions, so smart factory RF testing should reflect real operating environments and application behavior.

3. What is OTA validation, and why is it necessary for industrial wireless devices?

OTA (Over-the-Air) validation measures how a device transmits and receives RF signals under real radiated conditions rather than through conducted cable connections. Industrial devices are often installed near metal surfaces or inside enclosures that can alter antenna performance and overall radio behavior. OTA validation captures these effects and is often an important part of industrial wireless validation because conducted RF measurements alone may not fully represent real-world device performance.

4. What performance metrics matter most during manufacturing wireless testing?

The most important metrics include:

  • RSRP and RSRQ for received signal strength and quality
  • SINR for evaluating signal performance under interference and noise conditions
  • TRP and TIS for radiated transmit power and receiver sensitivity
  • Throughput, latency, reliability, and jitter for application performance
  • Handover success rate and mobility performance for moving devices
  • Interference coexistence performance for operation alongside other wireless systems

5. What types of OTA chamber solutions are used in industrial wireless validation programs?

The type of OTA chamber depends on the device, operating frequency range, antenna architecture, and testing objectives.

Modular OTA chambers provide flexibility for teams validating multiple industrial device types across different frequency bands and development stages.

RF shielded rooms, typically combined with absorber materials and dedicated measurement setups, support radiated testing of larger systems that cannot fit inside conventional OTA chambers, including vehicle-mounted radios and large industrial controllers.

RF shielded enclosures and compact test boxes are commonly used for repeatable production-line testing of smaller embedded radios and IoT modules.

The right choice depends on device dimensions, operating frequency range, antenna configuration, required measurement accuracy, and whether testing is intended for development, validation, or production.

Categories
Blogs

Global Test Equipment Rollouts: How to Manage 24/7 Support Across Multiple Regions

Table of Contents

  1. Why Global Test Equipment Rollouts Are More Complex Than They Appear
  2. Key Challenges in Multi-Region RF Test Deployments
  3. Why 24/7 Support Is Critical for Global Test Operations
  4. Building a Scalable Global Test Equipment Rollout Strategy
  5. The Role of Engineering Support in Sustaining Long-Term Operations
  6. Reliable Global Test Operations Require More Than Installation
  7. Frequently Asked Questions

Shipping test systems to multiple locations is only one part of the deployment process. Keeping those systems operational across different regions is another challenge entirely. In telecom and RF environments, testing operations often support validation programs, engineering schedules, and production-related activities where downtime can create delays extending well beyond a single facility.

That is why successful global RF equipment deployment is not limited to installation alone. It requires planning for system consistency, engineering coordination, and continuous support coverage across regions and time zones.

A structured telecom test system rollout should consider the full operational lifecycle from day one. Regional infrastructure, local technical readiness, incident response and escalation processes, remote diagnostics, spare-part availability, and long-term maintenance all influence how effectively a deployed test environment performs once it goes live.

Global Test Equipment Rollouts:

Key Takeaways

  •  A global RF equipment deployment requires engineering planning, not just installation planning.
  •  A structured telecom test system rollout helps maintain consistency and repeatability across regions.
  •  Remote test equipment support can improve system availability and reduce downtime in distributed test environments.
  • Telecom engineering support services and RF infrastructure support help reduce operational disruption.
  •  Custom test equipment, engineering development services, and RF testing solutions can address specialized deployment and validation requirements.

Why Global Test Equipment Rollouts Are More Complex Than They Look

On paper, deploying test systems across multiple sites may appear straightforward. Equipment is designed, shipped, installed, and integrated. In practice, global deployments rarely progress that smoothly.

A site in one region may operate under very different facility conditions than another. Power quality and infrastructure requirements may vary. Installation environments may differ from the original assumptions. Local engineering teams may have varying levels of technical capability and support availability. Even small differences can create delays, increase commissioning effort, or affect system consistency.

That is why a global RF equipment deployment should be managed as an engineering-led program rather than treated only as a logistics exercise.

In RF and telecom testing, consistency matters. A test system should not produce different outcomes across regions because of variations in setup, configuration, calibration, or integration practices. Standardization becomes critical when organizations need reliable and repeatable results across multiple sites.

This engineering-first approach is reflected in companies such as Orbis Systems, where RF test environments, technical integration, and structured deployment methodologies form part of the broader deployment process.

The Real Challenges in Multi-Region RF Deployment

A multi-region RF deployment introduces challenges that are often operational as much as technical.

One of the biggest issues is site variation. Even when the same system is deployed globally, the environment surrounding that system may differ significantly. Facility infrastructure, power quality, environmental controls, network readiness, installation conditions, and local technical resources can all affect integration timelines and deployment outcomes.

Then there is support coverage.

Technical issues do not follow business hours. If a system problem occurs in one region while the responsible support team operates in another time zone, issue resolution may be delayed. In global telecom environments, that delay can affect testing schedules, validation activities, and operational continuity.

System consistency is another common challenge. In global wireless testing operations, small differences in configuration, software versions, calibration status, or test procedures can create larger testing issues later. Engineering teams often spend unnecessary time resolving variation instead of focusing on performance and validation objectives.

Maintenance planning, spare parts coordination, change control, and technical escalation also become more complex as additional sites are introduced.

This is why multi-region RF deployment requires structured planning and lifecycle management from the beginning rather than reactive troubleshooting after deployment.

Why 24/7 Remote Test Equipment Support Matters

Global test environments do not always operate on a single schedule. Engineering teams may work across different regions, and test systems may support validation programs, integration activities, or production-related operations outside standard local working hours.

That changes how support needs to operate.

When a system issue affects an active testing environment, teams may require timely technical support to minimize disruption. Waiting until another regional support team becomes available may not be practical.

A structured remote test equipment support model can help organizations:

  • Accelerate issue diagnosis and response
  • Reduce downtime across distributed sites
  • Improve support continuity across time zones
  • Maintain availability in global testing operations

This becomes especially important during a telecom test system rollout and early operational phases, when systems may still require commissioning, technical optimization, performance verification, and operational stabilization after deployment.

In practical terms, support is not only about fixing faults. It is about maintaining testing continuity when multiple regions depend on shared test infrastructure.

This approach is also reflected in RF test environments supported by companies such as Orbis Systems, where engineering coordination and technical support contribute to broader operational performance.

Building a Rollout Strategy That Can Scale

A rollout strategy works best when it can be repeated without introducing additional complexity each time a new site is added.

That means standardization needs to be built into the deployment process.

Consistent system architecture helps reduce variation between locations. Engineering teams can troubleshoot more efficiently when systems follow validated and controlled configurations rather than site-specific custom implementations.

Some deployment environments, however, may require more specialized solutions. Certain projects may depend on custom test equipment or application-specific test configurations to meet unique testing requirements. In those situations, structured engineering development services can help align system design with project objectives while maintaining deployment consistency.

Integrated RF testing solutions can also help organizations maintain standardized and repeatable testing environments across multiple sites instead of creating fragmented deployment models.

Scalability is not simply about adding more locations. It is about ensuring that each additional site can be deployed, operated, and supported without increasing operational risk or support complexity.

That structured approach is one reason engineering-led deployment planning remains important in complex RF and telecom test environments, including technical applications addressed by Orbis Systems.

The Role of Telecom Engineering Support in Long-Term Operations

Deployment does not end when a system is installed.

Global testing environments often require continued technical oversight after installation. System validation, configuration optimization, issue escalation, integration updates, maintenance coordination, and performance troubleshooting may continue long after deployment is complete.

This is where telecom engineering support services become part of ongoing lifecycle and operational planning.

Engineering support often contributes to:

  • Technical troubleshooting
  • System commissioning and validation
  • Ongoing RF infrastructure support
  • System integration and change coordination
  • Operational continuity across sites

Some projects may also require custom test equipment, integrated RF testing solutions, or specialized engineering development services, depending on testing requirements, validation objectives, and deployment complexity.

Companies such as Orbis Systems work in technical areas where RF test systems, engineering integration, and structured testing environments contribute to broader long-term operational support.

Reliable Global Test Operations Depend on More Than Installation

Global test equipment rollouts succeed when organizations plan for what happens after deployment, not only during it. System consistency, configuration control, engineering coordination, issue response, maintenance readiness, and long-term operational support all influence how effectively global testing environments perform.

As testing programs expand across regions, deployment strategies need to prioritize operational availability and support readiness alongside installation execution. A well-managed rollout supported by technical planning, structured remote test equipment support, and reliable RF infrastructure support can help organizations maintain continuity across global operations.

That engineering-led approach remains central in complex RF environments, and it aligns with the structured test system focus seen in companies such as Orbis Systems, where RF testing, engineering integration, and controlled test environments support broader global deployment requirements.

Frequently Asked Questions

1. What is global RF equipment deployment?

Global RF equipment deployment refers to deploying, integrating, operating, and supporting RF test systems across multiple geographic regions while maintaining technical consistency, repeatable performance, and operational reliability.

2. Why is 24/7 support important in global test rollouts?

Global testing environments often operate across multiple time zones, so timely technical support can help reduce downtime and maintain operational continuity.

3. What are the common challenges in multi-region RF deployment?

Infrastructure variation, support coordination, configuration control, system standardization, maintenance logistics, and technical escalation are common challenges in multi-region RF deployments.

4. How does remote test equipment help engineering teams?

Remote test equipment support helps engineering teams accelerate diagnostics, improve response times, and reduce operational disruption across distributed test environments.

5. Why is RF infrastructure support important in telecom testing?

RF infrastructure support helps maintain system availability, reduce operational downtime, and support consistent test performance across global testing operations.

Categories
Blogs

Mid-Band, Sub-THz, FR3: Preparing Your RF Lab for the 7-24 GHz 6G Spectrum

Mid-Band, Sub-THz, FR3: Preparing Your RF Lab for the 7-24 GHz 6G Spectrum

Table of Contents

  • Why FR3 is becoming more important
  • Why older RF labs face limitations
  • Challenges in higher-frequency testing
  • Why OTA testing matters
  • Building a future-ready lab
  • Preparing for Future Testing Needs
  • Frequently Answered Questions

The transition toward 6G is pushing RF testing into new frequency ranges, and many RF labs are not yet fully prepared for this shift. Most existing labs were originally designed for FR1 testing and later adapted for FR2 requirements. FR3 introduces new challenges because the 7 GHz to 24 GHz frequency range requires improved shielding, higher measurement accuracy, advanced automation, and reliable OTA (Over-the-Air) validation.

As more companies invest in FR3 spectrum testing, 7 GHz to 24 GHz RF testing, and future sub-THz RF validation, they need scalable lab environments capable of supporting evolving test requirements without frequent infrastructure upgrades.

Preparing Your RF Lab for the 7-24 GHz 6G Spectrum

Key Takeaways

  • FR3 offers a balance between bandwidth capacity and coverage for future wireless networks.
  • Many legacy RF labs may not support modern FR3 spectrum testing requirements. 7 GHz to 24 GHz RF testing requires improved shielding and higher measurement accuracy.
  • FR3 OTA chamber testing helps engineering teams validate real-world wireless device performance.
  • Future sub-THz RF validation will require flexible and scalable RF lab infrastructure.
  • Reliable 6G spectrum testing solutions will become increasingly important as next-generation wireless technologies evolve.

Why FR3 Is Becoming More Important

Wireless data traffic continues to increase, and network operators need additional spectrum resources to support future demand. FR1 still provides strong coverage and propagation characteristics, but available bandwidth is limited. FR2 supports significantly higher data rates, but higher propagation loss, reduced coverage range, and deployment complexity create additional challenges.

FR3 is gaining attention because it occupies the frequency range between FR1 and FR2. It offers wider bandwidth availability than FR1 while avoiding some of the propagation and coverage limitations associated with higher-frequency FR2 bands. This makes FR3 a strong candidate for future wireless and 6G network development.

Researchers and manufacturers are already exploring FR3 for technologies such as massive MIMO, beamforming, integrated sensing and communication (ISAC), and non-terrestrial network (NTN) systems. These technologies require stable and highly accurate RF testing environments, increasing the demand for reliable 6G spectrum testing solutions.

As RF testing requirements continue to evolve, laboratories need to prepare their infrastructure before these technologies become widely deployed.

Why Older RF Labs Face Limitations

Many RF labs were originally designed for lower-frequency validation and compliance testing. Some facilities later added support for FR2 testing, but FR3 introduces new requirements that older systems may struggle to support effectively.

RF shielding is often one of the biggest challenges. At higher frequencies, even small sources of electromagnetic interference or signal leakage can affect measurement accuracy and testing repeatability. Older RF chambers may also lack the flexibility and performance needed for modern OTA and beamforming validation requirements.

Positioning systems can create additional limitations. Advanced antenna and OTA testing require highly precise movement, alignment, and measurement control. Older positioning systems may not provide the accuracy or automation needed for advanced wireless validation.

Manual workflows can further slow testing operations. Engineering teams often work under strict development timelines, and slower validation processes can delay product qualification and time-to-market.

Orbis Systems focuses on controlled RF environments designed to improve measurement reliability and testing accuracy. Its OTA chamber systems help support advanced wireless device validation for emerging RF technologies.

Challenges in 7 GHz to 24 GHz Testing

Moving into 7 GHz to 24 GHz RF testing introduces several technical challenges that require more advanced RF infrastructure and measurement capabilities.

RF signal propagation behavior changes as frequencies increase. Even small environmental factors inside the lab, such as reflections, leakage, cable losses, or electromagnetic interference, can affect measurement accuracy and repeatability. This makes RF chamber design and shielding performance more critical than in lower-frequency testing environments.

Beamforming validation also becomes more challenging as antenna systems grow increasingly complex. Advanced phased-array antennas and massive MIMO architectures require highly accurate OTA testing conditions to evaluate real-world wireless performance.

Device complexity is increasing as well. Companies are testing products such as smartphones, IoT devices, automotive radar and communication systems, network infrastructure equipment, and non-terrestrial or satellite communication platforms.

At the same time, many organizations are preparing for future sub-THz RF validation requirements. They need flexible and scalable RF test systems that can support future technology evolution without requiring major infrastructure replacement.

Why FR3 OTA Chamber Testing Matters

Traditional conducted RF testing cannot always accurately represent how a wireless device performs in real-world operating environments. This is why FR3 OTA (Over-the-Air) chamber testing is becoming increasingly important.

OTA testing allows engineers to evaluate wireless device performance inside controlled RF environments before products move to commercial deployment. It helps engineering teams identify performance issues earlier in the development cycle while improving measurement accuracy and testing repeatability.

These tests commonly evaluate parameters such as antenna efficiency, radiation patterns, beamforming performance, throughput, total radiated power (TRP), total isotropic sensitivity (TIS), and overall wireless device behavior.

Orbis Systems continues to focus on modular RF testing environments designed to support repeatable and reliable measurements for evolving wireless technologies.

Building a Next-Generation RF Lab Setup

Many companies wait until their existing RF labs begin creating significant operational or measurement limitations before investing in upgrades. At that stage, modernization projects can become more expensive, complex, and time-consuming.

Planning ahead is often a more effective approach. A modern next-generation RF lab setup should support both current and future wireless testing requirements.

RF laboratories should focus on improved shielding performance, advanced automation, modular chamber systems, and high-precision positioning equipment. They should also be designed with scalability in mind to support future expansion as wireless technologies continue to evolve.

Orbis Systems also supports evolving wireless validation requirements through RF engineering services, OTA chamber systems, and test equipment engineering solutions.

Implementing these improvements early can help organizations reduce long-term upgrade costs, improve testing efficiency, and accelerate product development cycles.

Preparing for Future Testing Needs

FR3 is already influencing how next-generation wireless products are tested. Older RF lab systems may create validation delays, reduced measurement accuracy, and costly infrastructure upgrades in the future.

Companies preparing for 7 GHz to 24 GHz RF testing and future sub-THz RF validation should invest in flexible and scalable RF test infrastructure today. Orbis Systems continues to support RF testing environments designed for evolving wireless and RF validation requirements.

Frequently Answered Questions

1. What is the FR3 spectrum?

FR3 refers to the emerging frequency range between approximately 7 GHz and 24 GHz, positioned between FR1 and FR2. FR1 provides wider coverage and strong propagation characteristics, but the available bandwidth is limited for future network demand. FR2 can deliver significantly higher data rates, but higher propagation loss and shorter coverage range create additional challenges.

This is where FR3 becomes important. It offers wider bandwidth availability than lower-frequency bands while avoiding some of the propagation limitations associated with higher-frequency FR2 bands. Because of this, companies and research organizations are exploring FR3 for future 6G development.

FR3 is also being studied for technologies such as beamforming, massive MIMO, integrated sensing and communication (ISAC), and non-terrestrial network (NTN) systems.

2. Why do older labs face problems with FR spectrum testing?

Many RF labs were originally designed for lower-frequency testing and validation. Some were later upgraded to support FR2 testing, but that still may not be sufficient for FR3 spectrum testing requirements.

For example, older RF chambers may not provide adequate shielding effectiveness to prevent electromagnetic interference or signal leakage. Positioning systems may also lack the precision needed for advanced antenna and OTA measurements. In addition, manual testing workflows can slow validation processes and reduce overall testing efficiency.

These limitations become more noticeable as testing moves into higher-frequency RF environments.

3. Why is FR3 OTA chamber testing needed?

Traditional RF testing still plays an important role, but it does not always accurately represent how a wireless device performs in real-world operating conditions.

This is why FR3 OTA (Over-the-Air) chamber testing is becoming increasingly important. OTA testing helps engineering teams evaluate antenna performance, radiation patterns, beamforming behavior, throughput, total radiated power (TRP), total isotropic sensitivity (TIS), and overall wireless device performance inside controlled RF environments.

OTA validation also helps teams identify performance issues earlier in the product development cycle, before commercial deployment.

4. Why is sub-THz RF validation difficult?

RF testing becomes significantly more sensitive as frequencies increase toward the sub-THz range. Signal attenuation increases, and even small environmental effects inside the testing environment can affect measurement accuracy and repeatability.

Some organizations also discover that their existing RF infrastructure cannot adequately support these higher frequencies. They may require improved shielding, higher-precision measurement equipment, lower-loss RF interconnections, advanced calibration methods, and increased automation.

This is why many engineering teams are preparing early for future sub-THz RF validation requirements instead of waiting until deployment timelines become critical.

5. What makes a good next-generation RF lab setup?

A modern next-generation RF lab setup should be flexible and scalable enough to support evolving wireless testing requirements. This typically includes improved RF shielding, high-precision positioning systems, modular chamber configurations, advanced automation, and scalable RF measurement infrastructure.

Labs that prepare early are usually better positioned to support future FR3, OTA, and sub-THz testing requirements while avoiding repeated infrastructure upgrades later.

Categories
Blogs

NTN OTA Testing Explained: How to Validate Satellite-to-Device 5G Connectivity in Your Lab

NTN OTA testing

Table of Contents

  • Why NTN Validation Is More Complex Than Traditional Testing
  • What is NTN OTA testing?
  • Why traditional RF testing falls short
  • Key tools used for validation
  • How Direct-to-Device Satellite Testing Works
  • Important NTN OTA Performance Metrics
  • Why flexible test environments matter
  • Building Better NTN Testing Workflows
  • Frequently Asked Questions

Satellite communication is no longer limited to military systems, aviation networks, or space missions. It is now becoming an important part of commercial wireless communication as well. Telecom operators, chipset manufacturers, IoT companies, and smartphone brands are increasingly exploring direct-to-device satellite connectivity.

This development is creating new opportunities for products that require connectivity in remote or underserved areas. Smartphones, emergency communication devices, connected vehicles, asset tracking systems, and industrial IoT equipment are some common examples. These applications can benefit from satellite communication when traditional terrestrial mobile networks are unavailable.

However, designing a satellite-capable device is only one part of the challenge. Manufacturers must also ensure that the device performs reliably under real NTN operating conditions. A device that performs well in a conventional cellular network may still encounter issues when communicating through satellite networks.

Unlike terrestrial networks, NTN environments introduce additional challenges such as long propagation delays, Doppler shift caused by satellite movement, weaker signal levels, dynamic beam coverage, and varying link conditions. These factors can significantly affect synchronization, throughput, antenna performance, and overall connection stability.

That is why NTN OTA testing has become a critical part of device development and validation. Proper satellite connectivity testing allows engineering teams to identify RF, protocol, antenna, and performance-related issues early in the development cycle rather than discovering them after deployment.

Companies developing advanced RF and OTA validation environments often evaluate solutions from Orbis Systems to support emerging NTN and satellite device testing requirements.

NTN OTA Testing Explained: How to Validate Satellite-to-Device 5G Connectivity in Your Lab

Key Takeaways

  • Satellite connectivity is creating new testing requirements
  • Traditional RF labs cannot fully recreate satellite conditions
  • Satellite device connectivity testing improves product reliability
  • Direct-to-device testing helps teams identify issues earlier
  • Controlled environments improve testing accuracy
  • Flexible and scalable validation systems

Why NTN Validation Is More Complex Than Traditional Testing

Traditional wireless testing was primarily designed for devices communicating with fixed terrestrial network infrastructure. That approach works well for conventional mobile communication because the radio environment is relatively stable. Satellite communication is different because the serving satellite and beam coverage continuously change during operation.

As satellites move, they introduce a Doppler shift that can significantly affect signal frequency and synchronization. If a device cannot properly compensate for these frequency variations, communication stability may be impacted.

Latency is another important challenge. Since signals travel much longer distances in satellite communication systems, propagation delays are naturally higher than in terrestrial networks.

Beam switching also becomes critical in NTN environments. A device may transition between multiple satellite beams or satellites while maintaining an active connection, and these handovers must occur seamlessly.

Signal conditions can also vary depending on satellite position, elevation angle, atmospheric conditions, surrounding interference, and device orientation. Reproducing these dynamic scenarios accurately is difficult in a conventional RF lab environment.

This is where advanced OTA validation systems, such as a 5G OTA chamber, RF channel emulation, and flexible OTA test platforms, become essential for accurate 5G NR NTN testing. Companies developing advanced RF validation environments, including Orbis Systems, support these complex satellite device testing requirements through controlled and repeatable OTA testing environments.

What Is NTN OTA Testing?

NTN OTA testing evaluates how a wireless device performs under satellite communication conditions within a controlled RF environment. Unlike conducted testing, where devices are connected directly through RF cables, OTA testing measures radiated antenna and wireless performance over the air.

This approach gives engineering teams a more realistic understanding of how a product will behave under actual operating conditions.

During satellite communication OTA testing, teams typically evaluate signal acquisition, uplink and downlink performance, throughput, antenna efficiency, receiver sensitivity, and overall connection stability.

Test environments may also simulate weaker signal conditions, Doppler shift, propagation delay, dynamic beam coverage, and varying channel conditions to understand how the device responds under real NTN scenarios.

Because satellite communication behaves differently from conventional terrestrial wireless networks, proper non-terrestrial network validation requires controlled and repeatable testing environments that produce accurate and reliable results.

Why Traditional RF Testing Falls Short

Traditional RF labs were primarily designed for standard terrestrial wireless devices. They are effective for testing products that communicate with fixed cellular infrastructure, but satellite communication introduces very different testing requirements.

For example, NTN systems involve much longer propagation paths, dynamic channel conditions, and continuously changing beam coverage. Devices may also need to maintain stable connectivity while satellites move rapidly across their coverage areas.

Conventional RF test environments often cannot accurately reproduce NTN-specific conditions such as Doppler shift, propagation delay, dynamic beam transitions, and realistic over-the-air satellite communication scenarios.

External RF interference can also affect measurement accuracy. Without controlled and repeatable OTA testing environments, engineering teams may miss critical performance or antenna-related issues during device validation.

That is why many companies now use advanced RF chamber solutions and OTA validation platforms for accurate 5G NR NTN and satellite device testing.

Key Tools Used for Validation

Reliable NTN OTA testing depends on having the right RF validation setup.

A 5G OTA chamber provides a controlled RF environment where external interference and unwanted reflections are minimized during testing.

Channel emulators and NTN network simulators are used to reproduce satellite-related conditions such as Doppler shift, propagation delay, beam movement, and dynamic network behavior.

Positioning systems allow engineering teams to evaluate antenna performance from multiple angles and analyze radiated performance characteristics under different orientations.

Automated OTA test platforms help teams perform repeatable and efficient validation while reducing manual effort and improving test consistency.

Together, these systems enable companies to perform accurate and reliable NTN satellite device testing before products move into deployment or certification stages. Companies building scalable RF and OTA validation environments often evaluate solutions from Orbis Systems to support advanced NTN testing requirements.

How Direct-to-Device Satellite Testing Works

Direct satellite communication is gaining significant attention across the telecom industry. As a result, direct-to-device (D2D) NTN testing has become increasingly important.

This validation process checks whether smartphones, IoT devices, modems, and other wireless products can communicate directly with satellites without relying solely on terrestrial cellular infrastructure.

Devices are placed inside controlled OTA test environments where engineering teams simulate real satellite communication conditions, including weak signal levels, Doppler shift, propagation delay, and dynamic beam coverage.

During testing, teams typically evaluate signal stability, uplink and downlink performance, throughput, antenna behavior, synchronization, and overall link reliability.

Engineering teams may also test how devices behave under low-signal or edge-of-coverage conditions. This process helps identify RF, protocol, and connectivity issues early in development before products reach deployment or commercial release.

Important NTN OTA Performance Metrics

Testing teams focus on performance measurements that directly affect device reliability and NTN communication quality.

These measurements commonly include latency, throughput, received signal strength, packet loss, antenna efficiency, beam switching performance, and handover stability.

Some engineering teams also evaluate antenna radiation patterns, receiver sensitivity, and radiated performance metrics to better understand overall antenna behavior under OTA conditions.

Together, these measurements help companies assess whether a device is ready for real-world NTN deployment and operational use.

Why Flexible Test Environments Matter

NTN and satellite communication technologies continue to evolve rapidly. New satellite constellations, wireless devices, frequency bands, and evolving 3rd Generation Partnership Project standards are continuously introducing new validation requirements.

As testing demands change, a lab setup that works today may not fully support future NTN and satellite testing needs. Companies, therefore, require flexible and scalable validation environments that can adapt to new technologies without major infrastructure changes.

Scalable RF chamber solutions, modular 5G OTA chamber systems, and automated OTA test platforms help engineering teams expand testing capabilities while maintaining repeatable and reliable measurement performance.

These flexible validation environments also help companies prepare for future NTN, 5G Advanced, and next-generation wireless testing requirements without needing to completely rebuild their labs.

Building Better NTN Testing Workflows

Satellite connectivity is becoming an increasingly important part of modern wireless communication. As more companies develop products designed for NTN and satellite communication systems, validation requirements will continue to expand.

Accurate non-terrestrial network validation helps reduce RF, antenna, and connectivity risks before product deployment. Reliable satellite communication OTA testing also helps engineering teams improve device performance, repeatability, and overall deployment confidence.

With the right 5G OTA chamber, scalable RF chamber solutions, and efficient OTA test platforms, companies can build more reliable and future-ready NTN testing workflows.

Companies developing advanced RF and OTA validation environments, including Orbis Systems, continue to support evolving NTN and satellite device testing requirements.

Frequently Asked Questions

1. What is NTN satellite testing?

NTN satellite testing evaluates whether a device can reliably connect and communicate with satellite networks before commercial deployment. It helps engineering teams validate device performance under conditions such as weak signal levels, long propagation paths, Doppler shift, and moving satellite coverage.

2. Why is satellite device connectivity testing important?

It allows engineering teams to evaluate signal strength, latency, antenna behavior, and connection stability under controlled OTA testing conditions before deployment in real-world environments.

3. What devices need direct device testing?

Direct-to-device testing is commonly used for smartphones, IoT devices, connected vehicles, satellite modems, industrial equipment, and emergency communication devices.

These products need testing to confirm they can connect directly to satellites without depending on traditional network towers.

4. Why is a 5G OTA chamber important for NTN testing?

A 5G OTA chamber provides a controlled and repeatable RF environment where external interference is minimized during testing. This allows engineering teams to accurately measure radiated antenna performance, signal quality, and connection stability during NTN validation.

5. What is measured during 5G satellite RF testing?

During 5G NR NTN testing, engineering teams commonly measure latency, throughput, received signal strength, packet loss, antenna performance, beam switching behavior, and handover stability. Some advanced OTA validations also evaluate receiver sensitivity and radiated performance metrics such as TRP and TIS.

Categories
Blogs

RF Shield Enclosures for Multi-Device Testing Environments

RF Shield Enclosures for Multi-Device Testing Environments

Table of Contents

  • What is an RF Shield Enclosure
  • Why Multi-Device Testing is Important
  • Challenges in Multi-Device RF Testing
  • How RF Shield Enclosures Help
  • Types of RF Testing Environment Solutions
  • Choosing the Best RF Enclosure for Multi-Device Testing
  • Supporting Reliable Multi-Device Testing
  • Frequently Asked Questions

Wireless devices are now used across industries such as telecommunications, automotive, aerospace, and IoT. As device volumes increase, testing requirements have also grown significantly. In many production and validation environments, engineers must test multiple devices simultaneously to meet throughput demands.

However, multi-device RF testing introduces challenges such as signal interference, poor isolation, and inconsistent results if the testing environment is not properly controlled.

This is where RF shielding solutions play a critical role. However, you may ask, what is an RF shield enclosure? Then read on below.

RF Shield Enclosures

Key Takeaways

  • RF shield enclosures create a controlled testing environment
  • Understanding what an RF shield enclosure is helps in selecting the right system
  • Multi-device testing improves speed and productivity
  • Signal interference and poor isolation are common challenges
  • RF testing environment solutions help ensure accurate results
  • Systems like Rf shielded chamber and RF isolation racks support different needs
  • The best RF enclosure for multi-device testing depends on isolation and scalability

What is an RF Shield Enclosure

An RF shield enclosure is a specially designed structure that attenuates electromagnetic (EMI/RF) signals, creating a controlled environment for wireless testing.

Instead of completely blocking signals (which is practically impossible), these enclosures provide high shielding effectiveness, typically ranging from:

  • 60 dB to 100+ dB isolation, depending on design and frequency

This means:

  • External signals are significantly reduced before reaching the device under test (DUT)
  • Internal signals are contained, minimizing leakage and interference

Key Functions

  • Isolation from external RF noise
  • Reduction of signal leakage
  • Controlled and repeatable test conditions

These enclosures are widely used in:

Why Multi-Device Testing is Important

Testing one device at a time is no longer efficient in high-volume environments.

Benefits of Multi-Device Testing

  • Increased throughput
  • Reduced test time
  • Better utilization of test equipment
  • Lower cost per unit tested

This approach is commonly used in:

  • Mobile device manufacturing
  • IoT module validation
  • Telecom product testing

However, scaling testing in this way requires careful RF design.

Challenges in Multi-Device RF Testing

Signal Interference

When multiple DUTs transmit simultaneously, signals can overlap (co-channel or adjacent-channel interference), making accurate measurements difficult.

Poor Isolation (Crosstalk)

Without sufficient isolation:

  • Signals from one DUT can couple into another
  • Measurement accuracy is compromised

Typical Requirement:

  • Isolation between test ports/compartments: >50–80 dB (depending on frequency, application, and test standard)

Inconsistent Results

Variations in:

  • Test environment
  • RF reflections (multipath effects)
  • External noise

can lead to poor repeatability and measurement uncertainty.

Complex System Integration

multi-device test setups require:

  • RF routing (switches, combiners, attenuators)
  • Proper antenna placement or conducted connections
  • Shielding design (RF enclosures, absorbers)
  • Automation and test software integration

Without proper system design, complexity can reduce test efficiency and increase error.

For these reasons, proper RF testing environment solutions are required.

How RF Shield Enclosures Help

RF shield enclosures are engineered to address the above challenges by combining mechanical design and RF engineering.

Key Advantages

  • High Shielding Effectiveness
  • Prevents external interference from impacting test results
  • Controlled Internal Environment
  • Ensures stable and repeatable measurements
  • Reduced Crosstalk
  • multi-compartment designs improve isolation between DUTs
  • Support for Automation
  • Compatible with robotic handling and automated test systems.

As a result, RF shielded enclosure multi-device systems are widely used in modern testing environments.

Types of RF Testing Environment Solutions

Different RF testing requirements demand different types of controlled environments. Understanding these options helps in selecting the right solution for a given application.

RF Shielded Chamber

An RF shielded chamber provides high shielding effectiveness (typically 80–100 dB), isolating the test environment from external electromagnetic interference. It is commonly used for precise RF measurements and general wireless device testing.

Shielded Anechoic Chamber

A shielded anechoic chamber combines electromagnetic shielding with RF absorbers to minimize internal reflections. This creates a free-space-like environment, making it ideal for OTA (Over-the-Air) testing, antenna measurements, and radiation pattern analysis.

RF Isolation Racks

RF isolation racks are modular, multi-compartment systems designed for parallel testing of multiple devices. Each compartment provides controlled isolation (typically >60 dB), reducing crosstalk and enabling efficient multi-device testing in production environments.

RF Enclosures and Shield Boxes

RF enclosures and shield boxes are compact shielding solutions widely used in manufacturing and validation setups. They offer a balance between cost, size, and performance, and are often integrated with automated test equipment (ATE) for high-throughput testing.

Each of these solutions serves a specific role within a broader RF testing environment, depending on accuracy, throughput, and application requirements.

Choosing the Best RF Enclosure for Multi-Device Testing

Selecting the best RF enclosure for multi-device testing requires careful evaluation of both RF performance and operational requirements.

Key Factors to Consider

Shielding Effectiveness and Isolation:

The enclosure should provide adequate shielding effectiveness across the required frequency range (typically 60–100 dB). For multi-device setups, isolation between compartments is critical and should typically exceed 60–80 dB to minimize crosstalk.

Frequency Range:

Ensure the enclosure supports the target frequency bands, such as:

  • Cellular (4G/5G)
  • Wi-Fi (2.4, 5, 6 GHz)
  • Other wireless standards

Number of Devices (DUTs):

The enclosure design should support the required number of devices through multi-compartment architecture, enabling parallel testing without interference.

RF Design Considerations:

Performance depends on:

  • RF absorber usage (to reduce reflections)
  • Proper antenna placement or RF routing
  • Low insertion loss and good impedance matching (for conducted testing)

Automation and Integration:

For production environments, the enclosure should support:

  • Automated or pneumatic doors
  • Shielded RF connectors and filtered interfaces
  • Integration with automated test equipment (ATE)

Mechanical and Space Constraints:

The system should fit within available space while maintaining performance. Design aspects such as door sealing, RF gaskets, and filtered ventilation are critical to prevent leakage.

Scalability:

A modular and scalable design allows future expansion as testing requirements grow.

Supporting Reliable Multi-Device Testing

As wireless technologies evolve (especially with 5G and IoT), testing complexity will continue to increase.

A well-designed RF testing environment ensures:

  • Accurate measurements
  • Repeatable results
  • Scalable production

By combining solutions such as:

  • RF shielded enclosures
  • Isolation racks
  • Anechoic chambers

Engineers can build robust and efficient multi-device testing systems

Frequently Asked Questions

1. What is an RF shield enclosure, and why is it important

An RF shield enclosure is a closed system designed to attenuate electromagnetic signals. It reduces external interference and minimizes internal signal leakage, creating a controlled environment for accurate and repeatable testing of wireless devices.

2. How does multi-device testing improve efficiency

Multi-device testing allows several devices to be tested at the same time. Therefore, it reduces total testing time. It also increases throughput in production environments. In addition, it helps make better use of space and equipment.

3. What problems can occur without proper RF isolation

Without proper RF isolation, signals from different devices can interfere with each other (crosstalk). As a result, measurements may become inaccurate, and signal leakage can impact test reliability.

4. What is the role of a shielded anechoic chamber

A shielded anechoic chamber blocks external signals and minimizes internal reflections using RF absorbers. This creates a free-space-like environment, making it ideal for OTA (Over-the-Air) testing, antenna measurements, and radiation pattern analysis.

5. How to select the best RF enclosure for multi-device testing

To select the best RF enclosure for multi-device testing, key factors include shielding effectiveness, isolation between compartments, number of devices, and supported frequency range. In addition, scalability, automation support, and space constraints should be considered. A well-designed system ensures accurate, repeatable, and efficient testing.

Categories
Blogs

Orbis Systems: Delivering Global Test Solutions with Local Engineering Support

Global Test Solutions

Table of Contents

  1. Why Consistency Is Important in Testing
  2. How Local Engineering Support Helps
  3. Building a Complete Test System
  4. RF Testing in Different Stages
  5. Long-Term System Use and Support
  6. Combining Global and Local Strengths
  7. A Clear and Reliable Testing Approach
  8. Frequently Asked Questions

RF and wireless testing have become increasingly precise as modern devices support multiple bands, advanced modulation schemes, and technologies such as 5G and MIMO. As device complexity grows, maintaining controlled and repeatable test conditions becomes critical to ensure accurate and reliable results.

To achieve consistent results across different locations, companies require standardized test systems with proper calibration and shielding. At the same time, fast and effective local engineering support is essential to address issues such as system integration, troubleshooting, and maintenance.

This is where global test solutions and local engineering support complement each other. Global solutions ensure consistency and standardization, while local expertise enables quick response and minimal downtime.

Orbis Systems follows this approach by combining robust RF test systems with dedicated local engineering support. This helps customers maintain reliable testing processes without delays or operational challenges.

In this blog, we explain this approach in a clear and practical way, making it easy to understand and apply.Orbis Systems: Delivering Global Test Solutions with Local Engineering Support

Key Takeaways

  • Global test solutions enable repeatable and correlated test results across multiple locations, improving overall product quality and validation consistency.
  • Local engineering support ensures fast troubleshooting, system integration, and minimal downtime through on-site assistance.
  • A complete RF test system including shielding, calibrated instruments, and controlled signal paths ensures accurate and reliable measurements.
  • Regular RF equipment support, such as calibration, preventive maintenance, and software updates, helps maintain system performance and measurement accuracy.
  • Long-term service support improves system stability, reliability, and equipment lifespan.
  • Combining standardized global systems with responsive local support enhances operational efficiency and simplifies test management.

Why Consistency Is Important in Testing

Many companies test products in multiple locations. Because of this, test results must be consistent and comparable across all sites. If results vary significantly from one lab to another, it becomes difficult to trust the data.

This is why global test solutions are important:

These solutions help maintain standardized test conditions, including calibrated equipment, controlled environments, and uniform test procedures. As a result, companies can compare results with confidence.

These test system support services help in several ways:

  • Ensure consistent testing methods across locations
  • Improve repeatability and correlation of results
  • Support smooth scaling from development to production

For example, if a device is tested in one lab, it should produce comparable results within defined tolerance limits when tested in another lab. This is essential for maintaining product quality.

Consistent systems also make work easier for teams. Engineers can follow the same procedures in every location, improving efficiency and reducing errors.

At the same time, systems must remain flexible. As wireless technologies such as 5G continue to evolve, test setups need to adapt to new requirements and standards.

How Local Engineering Support Helps

Global test systems are essential for standardization, but they are not sufficient on their own. Companies also need engineering support that is close to their operations.

Local engineering support teams can respond quickly when issues occur. They are familiar with the test setup and can provide hands-on support, such as checking RF connections, verifying calibration, and troubleshooting system-level problems. Because of this, issues are resolved faster.

Without local support, even minor problems, uch as cable losses, connector faults, or instrument communication errors, can cause delays and interrupt testing.

With local specialized support services, companies can:

  • Resolve technical issues quickly
  • Minimize system downtime
  • Adjust test setups and parameters based on local requirements

In addition, RF test equipment support becomes more effective with local teams. Engineers can perform on-site checks, calibration verification, and immediate corrections.

As a result, systems continue to operate reliably, and testing processes remain uninterrupted.

Building a Complete Test System

A test system consists of multiple components that must work together seamlessly. In RF and wireless testing, this can include shielding enclosures, test instruments, RF cables, switches, and control software. If any part of the system does not perform correctly, the overall test results can be affected.

Orbis Systems focuses on delivering complete, integrated test systems rather than individual components. This approach improves overall system performance and reduces the risk of measurement errors.

This process includes:

  • Planning the system architecture based on test requirements
  • Integrating all components with proper RF connections and control interfaces
  • Performing system calibration and validating measurement performance

When all elements are properly integrated and calibrated, testing becomes more accurate and reliable.

Standardized system deployment across multiple locations allows companies to use the same test setup globally. This ensures consistent test conditions and comparable results.

As a result, teams do not need to learn different setups at each location, saving time and reducing operational complexity.

A complete system also improves coordination between teams, as everyone follows the same structure and procedures.

RF Testing in Different Stages

RF testing is required at multiple stages of product development, and each stage has different requirements.

Research and Development

At this stage, flexibility is important. Engineers need to evaluate different designs, test multiple frequency bands, and make quick adjustments. Test systems must support configurable setups and detailed measurements.

Validation Stage

In this stage, accuracy and repeatability are critical. Testing is performed under controlled conditions using calibrated equipment to ensure reliable results. This stage may include pre-compliance or standards-based testing (such as for 5G performance), where consistent measurement conditions are essential.

Production Stage

During production, speed and consistency are key. Automated RF test systems are used to handle high volumes, with optimized test time and clear pass/fail criteria, while maintaining measurement accuracy.

Global test solutions help ensure that the same test setups and performance levels are maintained across multiple production locations.

At every stage, RF test equipment support is necessary. This includes calibration, maintenance, and troubleshooting to ensure that systems continue to operate correctly and deliver accurate results.

As a result, companies can maintain product quality throughout the entire lifecycle.

Long-Term System Use and Support

RF test systems are typically used over long operational lifecycles. To maintain accuracy and reliability, they require regular support and maintenance.

Orbis Systems supports long-term system use through structured service programs.

These services include:

  • Regular system checks, such as calibration verification and RF path inspection
  • Monitoring system performance to detect measurement drift or equipment issues
  • Updating software, firmware, and configurations to support new technologies and standards

These activities are part of comprehensive support services, including test system maintenance, lifecycle management, and technical support.

Such services help maintain system stability and measurement accuracy over time.

For example, regular checks can identify small issues—such as connector wear or calibration drift—before they lead to larger problems. System updates ensure compatibility with evolving technologies, including new wireless standards.

As a result, systems continue to perform reliably over extended periods.

In addition, proper advanced support services reduce overall operational costs by extending equipment life and minimizing unexpected failures.

Combining Global and Local Strengths

The combination of global test systems and local engineering support creates a robust and efficient solution.

Global test solutions ensure standardized setups and consistent, comparable results across multiple locations. At the same time, local engineering support provides fast response, hands-on troubleshooting, and flexibility to address site-specific requirements.

This combination offers several benefits:

  • Consistent and correlated testing across all sites
  • Faster problem resolution and reduced downtime
  • Effective system adjustments, such as calibration tuning and test parameter optimization
  • Improved operational efficiency

Companies operating in RF test environments—such as labs and production lines—benefit from this approach by maintaining both measurement accuracy and test throughput.

In addition, it improves coordination between teams across different regions by ensuring common systems, procedures, and support structures.

A Clear and Reliable Testing Approach

RF testing requires both consistency and flexibility. Companies need systems that operate with standardized configurations across locations, while also allowing quick adjustments to meet changing requirements.

Orbis Systems demonstrates this approach by combining global test solutions with local engineering support.

This approach helps maintain measurement accuracy and repeatability, reduce system downtime, and support long-term system performance. It also simplifies the management of testing operations across multiple locations.

For companies working with RF test systems, this provides a clear and practical framework for reliable and efficient testing.

Frequently Asked Questions

1. What are global test solutions?

Global test solutions are standardized testing systems designed to operate consistently across multiple locations. They ensure comparable and repeatable results within defined tolerances, helping companies maintain quality and confidence in their data.

2. Why is local engineering support important?

Local engineering support is important because it allows a quick response to problems. Engineers can reach the site faster and solve issues directly. This reduces downtime and keeps testing systems running smoothly.

3. How does RF test equipment support help in testing?

RF test equipment support helps maintain system performance through calibration, preventive maintenance, system checks, and troubleshooting. With proper support, systems continue to deliver accurate and repeatable results.

4. What are worldwide test system services?

Worldwide test system services help companies deploy and manage standardized testing systems across multiple locations. They ensure consistent configurations, procedures, and performance across all sites.

5. Why are lifecycle management services needed?

Lifecycle management services help maintain systems over time. They include monitoring, updates, and regular maintenance. These services help extend system life and reduce the risk of unexpected failures.

Categories
Blogs

Key Factors That Affect RF Shield Box Performance

Key Factors That Affect RF Shield Box Performance

Table of Contents

  1. Why RF Shielding Matters for Accurate Testing
  2. Shielding Effectiveness and Isolation Levels in an RF Shield Box
  3. Leakage Points and Mechanical Design
  4. Internal Absorbers and Signal Control
  5. Frequency Range and Application Needs
  6. Interface Design and Connectivity
  7. Build Quality and Materials
  8. Automation and Repeatability
  9. Thermal Management
  10. Size and Performance Balance
  11. Choosing the Right RF Shield Box for Reliable Testing
  12. Frequently Asked Questions

In wireless testing, results must be accurate, repeatable, and free from external interference. However, external electromagnetic interference (EMI) can impact measurements at any time. Because of this, engineers use RF shielding to control the test environment when working with an RF shield box.

An RF shield box attenuates unwanted signals and reduces noise from nearby sources. As a result, testing becomes more reliable and consistent. This is important during development, validation, and production testing.

At the same time, not every enclosure performs in the same way. Many small design details affect its shielding effectiveness and isolation performance. Therefore, understanding RF shield box performance factors helps engineers make better design and selection decisions.

RF Shield Box

Key Takeaways

  • RF shielding helps maintain accurate and repeatable testing by attenuating external electromagnetic interference, so results remain reliable.
  • Strong isolation in an RF shield box ensures stable measurements by preventing unwanted signals from entering or escaping the enclosure.
  • Leakage points can significantly reduce performance, as even small gaps or seams allow signals to interfere with testing.
  • Internal absorbers help control reflections and reduce standing waves, improving measurement consistency.
  • Good interface design, including proper filtering and feedthroughs, prevents leakage through cables and connections.
  • High build quality supports long-term performance by maintaining proper electrical contact and shielding integrity.
  • Effective thermal management keeps test conditions stable, minimizing the impact of temperature on DUT performance and material properties.

Why RF Shielding Matters for Accurate Testing

Wireless devices operate in environments where multiple signals and sources of electromagnetic interference (EMI) are present. As a result, testing without proper shielding can lead to inaccurate or inconsistent results. Therefore, RF shielding is essential to minimize external interference.

A well-designed RF shielded test enclosure attenuates external signals and provides high isolation, improving measurement accuracy. This enables engineers to achieve stable, repeatable, and reliable test results, highlighting the importance of RF shielding in modern testing environments.

Shielding Effectiveness and Isolation Levels in an RF Shield Box

Shielding effectiveness (SE) indicates how well an RF shield box attenuates external electromagnetic signals. It is measured in decibels (dB), where higher values represent greater attenuation.

Isolation refers to the overall ability of the enclosure to prevent unwanted signals from entering or escaping. If isolation is insufficient, external interference can affect the test environment, leading to variations in measurement results.

Because of this, shielding effectiveness and isolation are among the most critical performance factors of an RF shield box.

Engineers should consider:

  • Required attenuation level (dB)
  • Performance across the operating frequency range
  • Stability and repeatability during repeated tests

Leakage Points and Mechanical Design

Leakage points significantly reduce shielding performance, as even small gaps or discontinuities can allow electromagnetic signals to leak through or couple into the enclosure. Therefore, proper mechanical design is essential.

Common leakage areas include:

  • Door edges (requiring RF gaskets)
  • Panel joints and seams
  • Cable entry points and feedthrough interfaces

If these areas are not properly sealed, external interference can enter the enclosure, leading to inaccurate and inconsistent test results. As a result, overall shielding effectiveness and isolation performance can degrade.

Internal Absorbers and Signal Control

Inside an RF enclosure, electromagnetic signals can reflect from internal metallic surfaces. These reflections can create standing waves and multipath effects, which may impact measurement accuracy. Therefore, RF absorbers are used.

Absorbers reduce reflections and help control the internal electromagnetic environment, improving measurement stability and consistency.

This is especially important in RF shield boxes and isolation chambers, where controlled and predictable signal behavior is required for accurate testing.

Frequency Range and Application Needs

Each wireless device operates within a specific frequency range, and the RF shield box must provide adequate shielding effectiveness across that range.

Shielding performance varies with frequency; higher frequencies are more sensitive to small leakage paths, while lower frequencies can be more difficult to attenuate due to longer wavelengths. If the enclosure does not perform consistently across the required frequency range, measurement results may become unreliable.

Therefore, selecting an RF shield box that meets the shielding requirements for the intended frequency range and application is essential.

Interface Design and Connectivity

RF test systems require multiple connections, such as RF ports, USB, Ethernet, and power lines. However, each interface can act as a potential leakage path if not properly designed.

Therefore, interface design must preserve shielding integrity by minimizing signal leakage through connectors, cables, and feedthroughs. This is typically achieved using properly shielded connectors, filtered feedthroughs, and good grounding practices.

A well-designed RF shield box ensures that external connections do not degrade shielding effectiveness and isolation, making interface design a critical factor in overall RF shield box performance.

Build Quality and Materials

The materials used in an RF enclosure have a direct impact on its shielding performance. High-quality construction using conductive materials such as aluminum or steel provides better attenuation and longer service life.

Important factors include:

  • High-conductivity materials and appropriate thickness
  • Robust mechanical structure
  • Proper sealing with good electrical continuity (e.g., RF gaskets)

Good construction quality helps maintain consistent shielding effectiveness over time by preventing degradation due to wear, corrosion, or mechanical stress. This is important for both fixed installations and portable RF shielded boxes used in varying environments.

Automation and Repeatability

In many RF test setups, measurements are automated to improve efficiency and consistency. Therefore, the RF shield box should be compatible with automation systems such as robotic handling or automated test equipment (ATE).

Automation helps increase test speed and reduces manual errors, resulting in more consistent and repeatable measurements.

Repeatability is critical in RF testing. Variations in factors such as DUT positioning, cable routing, or door closure can affect results. Therefore, stable mechanical design, precise positioning, and controlled operation are necessary to ensure consistent test conditions.

While automation does not directly improve shielding effectiveness, it plays a key role in maintaining reliable and repeatable test performance.

Thermal Management

Devices under test (DUTs) generate heat during operation, especially during RF testing. If this heat is not properly managed, it can lead to temperature-induced variations in device performance, affecting measurement accuracy.

Proper thermal management helps maintain stable test conditions by controlling temperature and preventing overheating. This ensures more consistent and reliable measurement results.

In RF shield boxes, thermal solutions such as fans or ventilation must be carefully designed to avoid introducing additional leakage paths, ensuring that shielding effectiveness is not compromised.

Size and Performance Balance

The size of an RF enclosure affects both usability and shielding performance. Larger enclosures provide more space for devices and test setups, but they are more challenging to shield effectively due to increased seams, joints, and potential leakage paths.

Smaller enclosures are generally easier to seal and maintain high shielding effectiveness, but they may limit the size of the device under test (DUT) and test configurations.

Engineers should consider factors such as DUT size, required isolation level, and available space when selecting an enclosure. Therefore, achieving the right balance between size and shielding performance is an important aspect of RF shield box design.

Choosing the Right RF Shield Box for Reliable Testing

Selecting the right RF shield box is critical because shielding performance directly affects measurement accuracy, repeatability, and consistency. Multiple factors, including mechanical design, materials, interface design, and thermal management, contribute to overall performance.

When choosing an RF shield box, engineers should consider key parameters such as shielding effectiveness (isolation level), leakage control, frequency range, and build quality. A well-designed enclosure provides a controlled electromagnetic environment, enabling accurate and repeatable test results.

This highlights the importance of RF shielding in ensuring reliable wireless testing.

Frequently Asked Questions

1. What is an RF shield box used for?

An RF shield box is used to attenuate external radio signals during testing. It creates a controlled environment where electromagnetic interference is minimized. This enables engineers to perform accurate and repeatable tests in both development and production environments.

2. Why is RF shielding important in testing?

RF shielding is important because external electromagnetic interference (EMI) can affect measurements. Even small levels of interference can introduce errors or variability. Therefore, shielding helps maintain stable and repeatable test conditions, allowing engineers to trust the measurement data.

3. What are the key RF shield box performance factors?

The key factors include shielding effectiveness (SE), leakage control, internal absorbers, interface design, and thermal stability. In addition, frequency range, build quality, and mechanical design also play important roles. Together, these factors ensure accurate and consistent RF testing.

4. How do leakage points affect RF enclosure testing?

Leakage points allow electromagnetic signals to leak into or out of the enclosure, reducing isolation and overall shielding performance. Common areas include doors, seams, joints, and cable entry points. Therefore, proper sealing using RF gaskets and well-designed interfaces is essential for accurate testing.

5. How do I choose the right RF shield box?

To choose the right RF shield box, consider factors such as frequency range, required shielding effectiveness (isolation level), device size, and interface/connectivity needs. In addition, evaluate build quality and compatibility with your test setup. This ensures reliable, accurate, and repeatable testing results.

About Orbis Systems

Orbis Systems provides quality control solutions, functional testing solutions, components and services for its customers’ R&D, production and after sales needs. Our products and services increase efficiency and performance in our customers’ processes and hence shorten time to market, lower process costs and increase the end customers’ satisfaction.

Quick Links

Home
Solutions
Services
Careers
Resources
Events
Subscribe

Contact Locations

Finland
China
USA
India

Information

Sitemap
Contact Us
Privacy Notice

All Rights Reserved © 2026 Orbis Systems Oy
Konekuja 2, FI-90620, Oulu, Finland

Facebook X-twitter Youtube Linkedin Instagram
