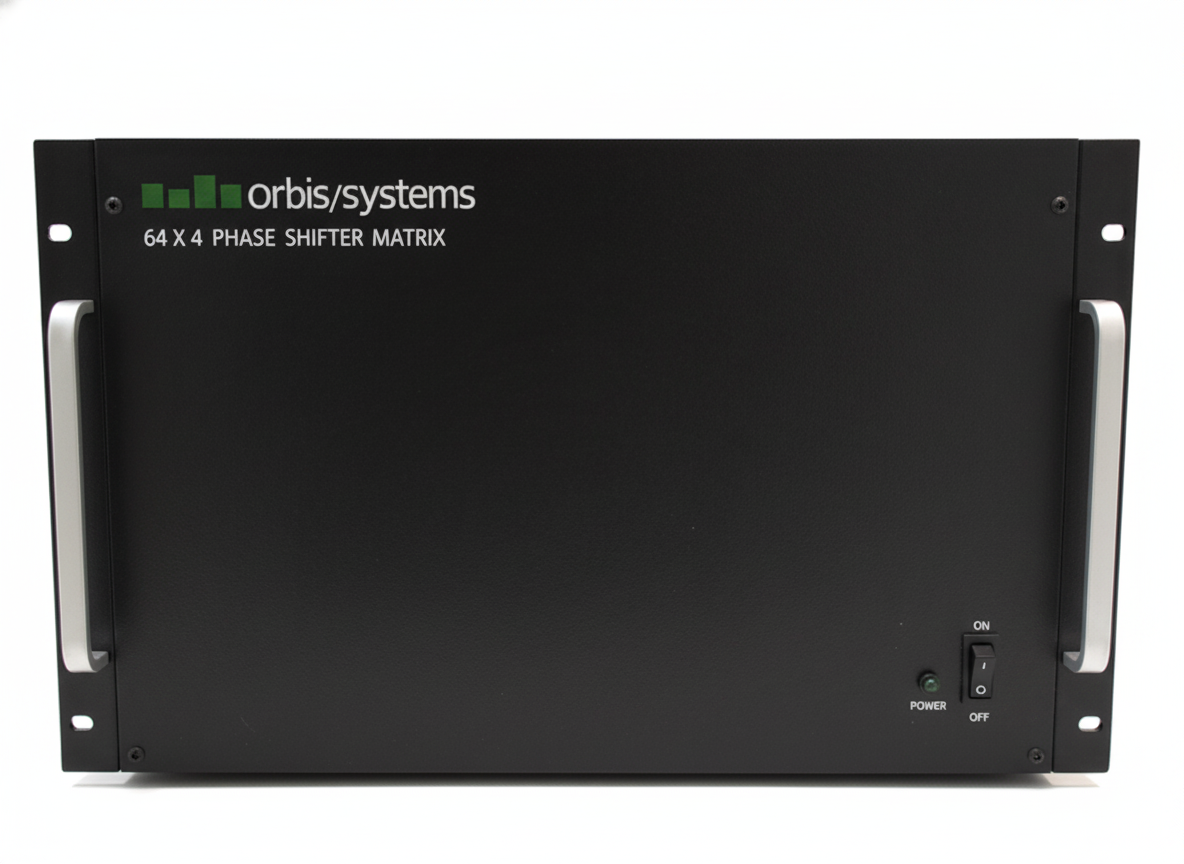

A phase shift matrix module enables independent, per-channel phase control for RF signals. These systems provide deterministic and repeatable phase adjustments, making them essential for beamforming emulation, antenna validation, and multi-channel RF testing.
A phase shift module is essentially a microwave network component that introduces a controllable phase rotation to an RF waveform, enabling precise signal manipulation and timing alignment.
Typical RF phase shifter module designs offer per-channel phase adjustment, which can be either continuous or discrete (stepped). Engineers often combine phase, attenuation, and signal routing control to emulate realistic spatial propagation conditions in a controlled lab setup.
These matrices support remote programming and automation via standard interfaces (e.g., LAN, GPIB, or USB), allowing for repeatable calibration, automated regression testing, and integration into complex RF test systems.
High phase stability, low insertion loss, and fine phase resolution are key performance parameters — ensuring accurate beam steering, MIMO correlation testing, and antenna pattern synthesis.
When integrated with RF signal switching and phase control hardware, the matrix becomes part of a fully automated testbed for MIMO, OTA, and beamforming validation.
Phase is everything in RF. An RF phase shift module introduces precise, controllable phase rotations to individual signal channels enabling accurate beamforming emulation, timing alignment, and MIMO correlation testing that simply can't be replicated without dedicated phase control hardware.
5G beamforming depends on exact phase relationships across multiple antenna elements. A phase shift matrix module provides independent per-channel phase control continuous or stepped giving engineers the precision they need to emulate realistic spatial propagation conditions in a controlled lab environment, without stepping outside.
Effortlessly. An RF signal phase controller supports remote programming via standard interfaces like LAN, GPIB, and USB slotting directly into automated RF test architectures for repeatable calibration, regression testing, and full integration with OTA chambers, switching units, and attenuator matrices.
Three things that can't be compromised are high phase stability, low insertion loss, and fine phase resolution. A well-specified phase shift matrix module maintains these across the full operational range, ensuring beam steering accuracy, consistent MIMO testing, and reliable antenna array characterization every single time.
Absolutely and that combination is where the real power lies. Integrating an RF phase shift module with programmable attenuators and signal switching units creates a fully automated testbed capable of handling MIMO verification, OTA chamber testing, antenna calibration, and TX/RX performance validation all within one unified platform.
