The Need for Faster RF Testing
RF testing is required to check how wireless devices perform before they are released or produced in large numbers. These devices include IoT modules, wireless sensors, communication units, and other RF-based products. Each device must be tested in a controlled RF environment to make sure the results are accurate.
However, as product volumes increase, testing one device at a time becomes slow. It also creates delays in development and production schedules. Because of this, many test teams look for ways to increase speed without reducing accuracy.
A dual RF shield box, often called a twin shield box, is one solution. It allows two devices to be tested at the same time while keeping both tests isolated. As a result, teams can achieve high-throughput RF testing without changing their test methods.
Key Takeaways
- A twin shield box contains two RF-isolated test chambers
- A dual RF shield box supports parallel RF testing
- Parallel testing reduces total test time without reducing accuracy
- Proper shielding and absorber materials are critical
Twin shield boxes are suitable for lab and production use
What is a Twin Shield Box

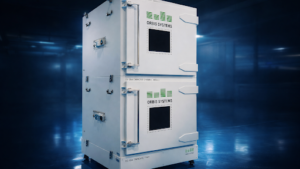

A twin shield box is an RF enclosure that contains two separate test chambers inside a single structure. Each chamber is individually RF-shielded. This prevents RF signals from entering or leaving the chamber during testing.
Each chamber works independently. It has its own shielding, absorber material, and connection points. Because of this design, two devices under test can be measured at the same time without interference.
Twin shield boxes are used for:
- RF functional testing
- Over-the-air measurements
- Wireless performance validation
Since both chambers are isolated, test results remain stable and repeatable.
How a Dual RF Shield Box Enables High-Throughput RF Testing
The main purpose of a dual RF shield box is to reduce total test time. Instead of running the same test twice in sequence, both tests are run at the same time. This process is known as parallel RF testing.
When test steps are identical, running them in parallel cuts testing time almost in half. Therefore, high-throughput RF testing becomes possible without adding more test stations.
This is achieved through:
- Separate RF shielding for each chamber
- Independent signal paths
- Consistent internal test conditions
Because of this separation, one test does not affect the other. Measurement quality stays the same, even when both chambers are used together.
Why Parallel RF Testing Is Used in Modern Test Setups
Parallel RF testing is widely used because it improves efficiency in a simple way. Instead of expanding lab space or buying more enclosures, teams can test more devices within the same setup.
As a result, several benefits are seen:
- Faster completion of test batches
- Better use of test equipment
- Reduced waiting time between tests
In addition, operators do not need to change test procedures. The same test logic is applied to both chambers.
Because accuracy is not compromised, twin shield boxes are suitable for both development testing and production testing.
Important Features of a Twin Shield Box
Choosing the right twin shield box requires attention to a few technical details. These details affect test quality and long-term use.
RF Shielding and Isolation
Good shielding is essential. The enclosure must block outside RF signals and contain signals generated by the device under test. High isolation ensures that the two chambers do not interfere with each other.
Absorber Material Inside the Chamber
Absorber material reduces reflections inside the chamber. This creates a stable RF environment. Because of this, over-the-air measurements become more consistent.
Feed-Through Connections
Feed-throughs allow cables to pass into the chamber without breaking the shielding. These usually include:
- RF connectors
- Power lines
- Data and control interfaces
Proper feed-through design helps maintain signal integrity.
Mechanical Stability
Devices must be placed in the same position for every test. Stable fixtures help achieve this. As a result, measurement repeatability improves.
Using Twin Shield Boxes in Lab and Production Testing
Twin shield boxes can be used in different stages of the product lifecycle. However, setup practices differ slightly depending on the environment.
Use in Development Labs
In development, engineers focus on performance and reliability. Twin shield boxes allow two prototypes to be tested under the same conditions. This makes comparison easier. It also saves time during repeated test cycles.
Use in Production Environments
In production environments, twin shield boxes are often integrated with test systems as part of RF shield box automation, helping reduce manual steps and maintain consistent test flow.
When combined with automated systems, test flow becomes smoother.
To maintain reliable results:
- Cable paths should be clearly defined
- Calibration should be checked at regular intervals
- Chamber conditions should be verified before testing
Following these steps helps ensure stable operation over long test runs.
Achieving Faster RF Testing with Consistent Results
As testing demands increase, teams need solutions that improve speed without adding complexity. A dual RF shield box allows two devices to be tested at the same time while keeping both tests isolated. Through parallel RF testing, teams can reach higher throughput without sacrificing accuracy.
When used correctly, twin shield boxes support reliable testing in both lab and production environments. They help teams meet testing goals while maintaining clear and consistent results.
Frequently Asked Questions
1. What devices are typically tested in a twin shield box
Twin shield boxes are used to test wireless modules, IoT devices, communication units, and other RF-enabled products. The device must fit within the chamber and operate within the supported frequency range.
2. Does parallel RF testing affect test accuracy
No. When the chambers are properly isolated, each test runs independently. Because of this, measurement accuracy remains unchanged.
3. Can different devices be tested at the same time
Yes. Different devices can be tested in parallel if their test requirements are compatible with the chamber configuration. However, test planning is important to avoid signal conflicts.
4. Why is absorber material necessary inside the chamber
Absorber material reduces internal reflections. This helps create a controlled RF environment and improves consistency in over-the-air measurements.
5. How does a twin shield box improve repeatability
Repeatability improves because test conditions stay consistent. Shielding, device position, and internal layout remain the same across test runs.
